Wheel Alignment Hoist – 4.5 Ton
In Stock
$6,299 (inc. GST)
Overview
Dimensions suit shed/ workshop use | Single phase 240v motor as standard | Secondary lift included as standard | 4.5 Ton rating will lift heavy vehicles with ease | Minimum 3.5 metre ceiling height required |
Wheel Alignment Hoist Features
- 4500kg/ 4.5 ton safe load limit
- Lifting height of 1.9m
- A single hydraulic cylinder lifts the runways by pulling the cables
- Flat runways with built in cut-outs for the included caster plates and slip plates
- The alignment kit is constructed with high strength steel balls to extend the service life
- Includes a pneumatic secondary lift as standard
- Durable powder coated finish
Safety Features
- 4 point pneumatic safety lock releases
- Additional secondary safety lock when weight comes off the cables
- Runways must first be raised a fraction before the safety locks will operate to allow the car hoist to be lowered
- Heavy duty 6mm thick cross beams and 5mm thick runways
- 10mm steel wire rope equalising cables
- Anti-surge valve in the hydraulic power unit
- This 4 post hoist must be bolted down and should not be used free standing
What’s Included?
- Wheel alignment hoist with all bolts, cables, lines and fixings
- 240v single phase hydraulic power unit (415V three phase available on request)
- Secondary lift
- Concrete anchor bolts
- Detailed installation instructions
What’s Not Included?
- Hydraulic oil
- Setup of power units electrical connection
- Compressed air supply
Optional Accessories
- An additional Secondary Lift can be added to this hoist
- An Optional Jacking Plate can be used as an extra support point under the vehicle
- Storing cars above and below? Be sure to use our Oil Drip Trays to keep them safe
Shed Requirements
- 150mm deep concrete at 32mpa
- Minimum ceiling height of 3.5m
Warranty & Certifications
- 3 year Australian warranty* includes structure, hydraulics & electrics
- Australian WorkSafe registered design
- CE certification
Wheel Alignment Hoist Warranty
When you purchase a Car Hoist from us you can guarantee that you are investing in a quality product with the support to match it.
Our Car Hoists come with 3 years warranty* for complete peace of mind.
* Joel’s Garage Gear offers 3 years parts only warranty on all Car Hoists. Warranty claims do not cover incorrect use or installation. See our Terms & Conditions for more information.
The guys at Joel’s garage did a fantastic job of installing our hoist. From the first phone call the guys at Joel’s went above and beyond highly recommend
Great customer service from start to finish and installer recommended we move the hoist and are happy we took that advice.Hoist works perfectly.
Service, prices, quality, delivery, easy to talk to. 5 stars, highly recommend
Hi, the staff members are friendly and knowledgeable. I had to preorder my scissor lift and was contacted when it had cleared Customs.Assembly was simple and after adding oil it is up and running.The best tool I've ever owned.Thank you.
Easy to order and arrived on time. When I picked up my hoist the lady there was so helpful.
Great service helped me put tool box on my trailer.And a great product will shop there again .Gold Coast store
Installer was on time and did a great job on the installation. Will definitely be buying more of your products
Joels Garage Gear is top quality gear and won't use anything else, highly recommended
Thanks to Joel garage and there sales man Andrew for organising my hoist for my detailing shop. Andrew was a huge help in getting the hoist organised and delivered on time . Great people to deal with.
Absolute legends! Excellent customer service. I had some issues on my end and needed assistance, Andrew, Ryan and Henry helped me right through to delivery. Very professional service. Absolutely love my new tool box. Quality exceeded expectation considering the price tag. 100% recommend. Thanks team.
Awesome product. Quick delivery and easy to install. Very happy with Joel’s garage gear. Would recommend to anyone. A+++++
Excellent quality tool trolley. Great value for money. Excellent workmanship. Highly recommend this tool trolley. Delivery was quick and easy to pickup. Look no further. This is the tool trolley for everyone.
The boys at the pickup location had excellent communication for a smooth pickup transaction. Their bead roller works great and is really heavy duty and robust
Great product at a great price. Super friendly team that is really easy to deal with. I’ve only given them 5 stars because it wouldn’t let me give them 7.Highly recommended.
Awesome range of products and excellent service. Purchased two sets of 4t jack stands, very happy with the communication and delivery. The product itself is spot on too, very well made. Highly recommend.
Got a transmission jack and it’s way to low to be easy to use, I’m average height for an Aussie and the the jack is shorter than me so it’s super awkward to use. Other than that it’s pretty good just such a shame it’s to short.The photo is it at full extension still 100mm to short to use so I’m taking the hoist down and awkwardly removing it he gearbox giving me a sore back.
Will have to say was good dealing with Joel's garage in sales and delivery, they are people of there word very happy with the product of a two post hoist
Quality hoist at a fabulous price and expert installation. I couldn’t be happier. A must have for an shed or garage!
Got my 2 post hoist installed today, all went very smoothly, hoist is good quality, can highly recommend!
I am a hoist installer.I first installed a Joels Garage Gear 4 ton 2 post hoist a few years ago. My customer had purchased the hoist online. I had not heard of Joels.The hoist was solid and seemed quite good quality.I have since installed more Joels Garage Gear Hoists. Several 2 post hoists and a 4 post hoist. The quality is impressive. They are obviously committed to great product development as I can see improvement in quality and design.I have now applied to become one of their registered Hoist Installers.
Absolute pleasure to deal with, kept me informed on the progress all the way to delivery. Highly recommended to use this company. Will always recommend to my friends. Thanks for the great service Ron
These guys were great to deal with, hoist arrived promptly and before due date, after sale's information very helpful, and to top it all off the product is fantastic. HIGHLY recommend Joel's
On time delivery, excellent hoist and fair price, easy to assemble, 2.7m clearance between posts is great.
My original thoughts were to buy a 4 post hoist but because of limited space I opted for the 2 poster from Joels Garage. So glad I did because it's so versatile, especially when my boat needs separating from it's trailer. With over 60 years experience in engineering I find the design and robust construction of my hoist is second to none and can certainly recommend it to prospective buyers. My only gripe is the vague instruction manual and lack of detail.
Flexible Payment Options Available
Dimensions
| MINIMUM CONCRETE THICKNESS | 150MM 32MPA |
| MOTOR SPECS | 240V 20A SINGLE PHASE/ OPTIONAL 415V THREE PHASE |
| MINIMUM HEIGHT | 220MM |
| MAX TABLE HEIGHT | 1950MM |
| POST HEIGHT | 2170MM |
| OVERALL WIDTH INC. PUMP | 3680MM |
| OVERALL LENGTH INC. RAMPS WHEN DOWN | 5350MM |
| TABLE LENGTH | 4400MM |
| EACH TABLE WIDTH | 500MM |
| N.W./ G.W | 1150KGS/ 1200KGS |
Freight Information
| HOIST | L: 450CM | W: 56CM | H: 82CM |
| WEIGHT | 1110KG | ||
| PUMP | L: 114CM | W: 56CM | H: 55CM |
| WEIGHT | 190KG | ||
| TOTAL WEIGHT | 1300KG |

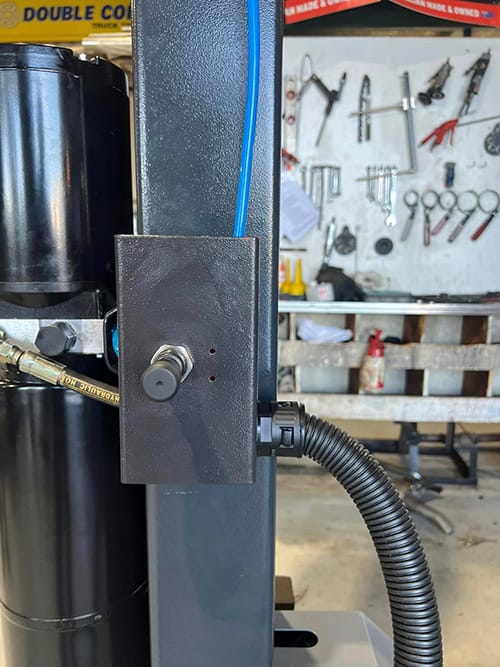

Product Photos
